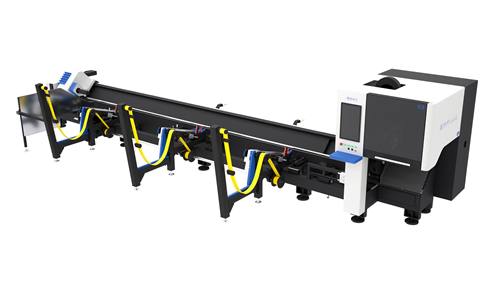

New unique double-sided middle chuck technology
- 1.5G acceleration, strong productivity.
- Matching laser range: 1500-3000W.
- Cutting pipe diameter range: round pipe: ∅8-90mm square pipe: □8*8-80*80mm.
Economy Chuck System
- Chuck 90 full stroke pneumatic chuck.
- Tailing can be controlled within 30mm-70mm.
- Repeat positioning accuracy 0.05mm, Maximum speed≤180r/min
Extremely short tail material
- Smooth cutting surface, no need for secondary polishing.
- The length of tail material of three-chuck laser pipe cutting machine is 0mm!
Modular designed
- The two-chuck and three-chuck can be selected according to the requirements.
- Also 2D, 3D cutting fiber laser head (bevel cutting) can be selected.
- It can help users improve material utilization and reduce production costs.
High-low machine bed
- More convenient and stable for loading, able to feed and cut up to 1000kg pipes.
Multi-functional cutting
- Applicable types of tubes: Round, Square, Rectangular, Oval, H steel, U steel, Angle steel, Triangle…
- Applicable types of cutting: Holes cutting, Angle cutting, Arc cutting, Letters & patterns cutting…
- Applicable types of material: Stainless steel, Carbon steel, Galvanized steel, Brass, Aluminum, Copper…
Unique design separated layer support system
- The system will automatically start supporting panel according to the cutting length of pipes.
Flexible unloading system
- The unloading collecting device can be adjusted flexibly according to the length of workpiece
