Pax Products Inc

• Booth: S33059

 Press Releases

• Automated, Part-Out Conveyor (Aug 23, 2024)

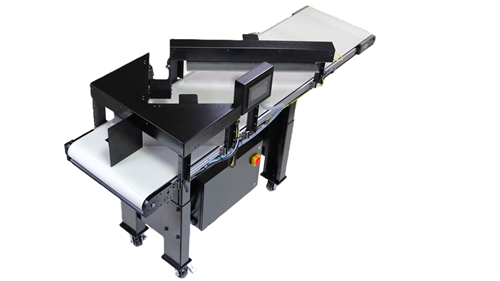

  Pax Products will showcase innovative methods of part & scrap removal.  The displayed cantilevered conveyor uses Pax’s new diverter design to eject bad parts and ensure a specific number of good parts go into each bin.  This conveyor also has a back-lit belt, (for vision inspection), and powered height and tilt capabilities.  To achieve these powered movements, Pax utilizes electromechanical actuators, which provide increased safety as compared to typical systems that utilize either pneumatic or hydraulic power.  These conveyors are available in up to 80” widths and can be customized to meet your needs.

  Visit Pax’s booth # S33059 to learn more about this and other Pax pressroom products.

• Quick Release Arm for Oscillating, (shaker), Conveyors: (Aug 23, 2024)

  To provide easier access to the press die area, the Pax EGD-50 and EGD-125 oscillating conveyors (shakers) now have an option for a quick-release arm, (the crossbar to which the trays attach).  This option allows the customer to quickly and easily remove and re-install the arm without the use of tools.  This option can also be easily retrofitted onto existing EGD-50 and EGD-125 units.

  Visit Pax’s booth # S33059 to learn more about this and other Pax pressroom products.

• Pax Low Profile Roller Coaters (Aug 23, 2024)

  Pax’s RCMR Roller Coater is for material widths starting at 18”.  These slim units utilize multiple upper and lower rolls to apply uniform lubrication on the top and/or bottom of the stock material.

  There are two air-driven cylinders attached to each upper roller.  These cylinders are utilized to ensure that the upper rollers apply uniform pressure against the material that passes through the rollers and the cylinders also lift the upper rollers to allow material to be easily threaded through the rollers.

  The units have a unique roll design that utilizes polyethylene spacers to limit the compression on the felt material, which minimizes the felt compression and increases roll life.  When a roller does need to be rebuilt, the unit’s “clam shell” design allows easy access to the rolls and each roller can be removed from the unit by simply loosening two bolts.  Once a roller is removed, the felt washers and polyethylene spacers can be easily removed and replaced.

  Visit Pax’s booth # S33059 to learn more about this and other Pax pressroom products.
