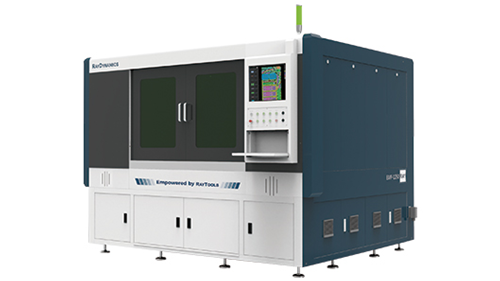

High precision linear guide with high repeated positioning accuracy, less wearing and stable performance.
RayTools CNC controller based on EtherCAT protocol to secure high efficient communication.
Supports various modes of axis pitch compensation to ensure machining accuracy.
Supports part processing statistics and production quantity management.
Friendly HMI with high flexibility and easy expanding.
|
Item
|
EMP5040
|
EMP6060
|
EMP8080
|
EMP1250
|
|
Linear Encoder(Fagor)
Resolution Ratio
|
1μm
|
0.5μm
|
0.5μm
|
0.5μm
|
|
Marble
|
1400* 1350*200
|
1800* 1350*200
|
1800* 1350*200
|
2300* 2208*200
|
|
Visual Positioning Range
(CCD)
|
500*290.5mm
|
600*490.5mm
|
800*690mm
|
1250*1140mm
|
|
Max. Acceleration
|
1g
|
1.5g
|
1.5g
|
1.5g
|
|
Processing Size
|
500*400mm
|
600*600mm
|
800*800mm
|
1250*1250mm
|
|
X-Axis
|
|
|
|
|
|
Fast-Moving Speed
|
60m/min
|
60m/min
|
60m/min
|
60m/min
|
|
Positioning Accuracy (Cutting)
|
±20µm
|
±20µm
|
±20µm
|
±40µm
|
|
Repeated Positioning Accuracy
|
±5µm
|
±5µm
|
±5µm
|
±5µm
|
|
Y-Axis
|
|
|
|
|
|
Fast-Moving Speed
|
60m/min
|
60m/min
|
60m/min
|
60m/min
|
|
Effective Travel
|
500mm
|
600mm
|
800mm
|
1250mm
|
|
Positioning Accuracy (Cutting)
|
±20µm
|
±20µm
|
±20µm
|
±40µm
|
|
Repeated Positioning Accuracy
|
±5µm
|
±5µm
|
±5µm
|
±5µm
|
|
Z-Axis
|
|
|
|
|
|
Travel
|
100mm
|
100mm
|
100mm
|
100mm
|
