A new tool for improved precicion. When cutting with consistently high precision, tool change is a critical step. Calibration is required afterwards to ensure that precision is maintained. This requires both competence and accuracy. With the new product Auto TCP Calibration Tool, the calibration is done automatically. It takes a fraction of the time, requires no special skills and always gives accurate results.

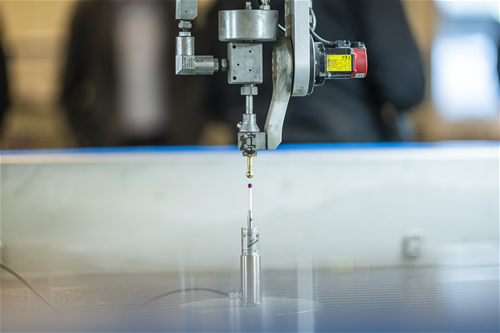

The product consists of three things. (1) A software for the control system, (2) a measuring probe on a base plate and (3) a calibration ball. The product is used for all types of angled cutting, i.e. machines equipped with Alphajet, Beveljet or FiveX cutting heads.

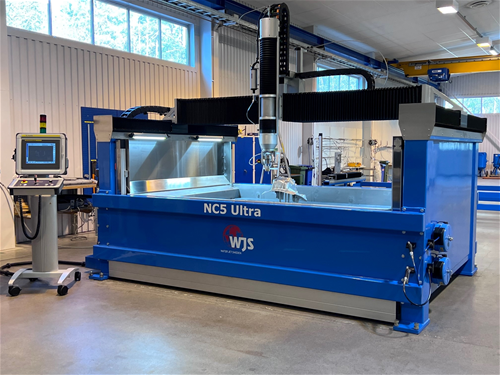

Forefront technology for advanced free form cutting

FiveX machines are commonly used in high tech industry sectors, built with our most advanced technology and with an exceptional stable design to be able to repeatedly perform high precision free form cutting of full 3D components.

Large-scale 5-axis processing allows the advantages of the waterjet process to be utilized in the finishing of fabricated structures, pressed parts, molded composite parts and other 3-D parts. The waterjet technology has been embraced largely by the Defense Industry, Space Industry, Aerospace Industry and Power Industry.

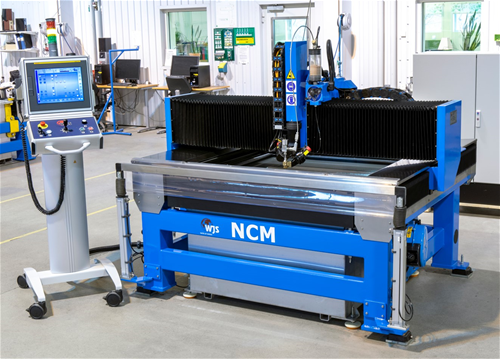

The NCM 10 Micro machine has a number of unique features compared to traditional waterjet cutting machines.

• It is designed for Fine Abrasive waterjet cutting with 230-240 mesh abrasives and 200-400 micron focusing tube.
• It has software controlled abrasive feeding to sense feed rate, blockage and critical level in abrasive buffer.
• The table frame is made of an epoxy resin concrete for excellent stiffness, accuracy and absorption.
• Both X and Y motion systems has Renishaw Invar Scales with extremely low expansion coefficient and high resolution.
• It has a palletized cutting table with a wide range of fixturing possibilities
• The stainless-steel catcher is rubber suspended to avoid vibrations.
• The catcher is also equipped with cooling elements to be able to control water temperature.

Equipped with the new Alphajet TVL cutting tool, the next generation of taper angle control you can produce parts in advanced materials that hasn’t been possible with waterjet technology before,

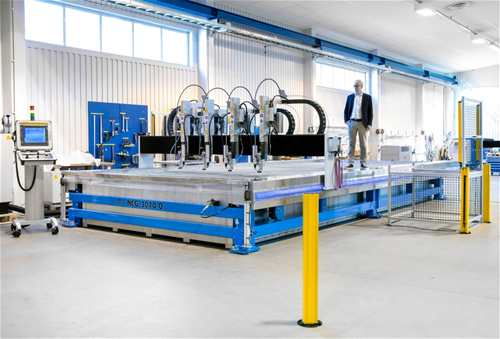

Robust, heavy duty waterjet cutting system, for all shapes, and large or odd sizes

Thanks to our worldwide patented guide system all machines have the same tolerance, independent of size. You get the same high performance from a 12 meter machine as from a 2 meter machine.

Each machine is tailored to fit the customer process requirements, easily adopted for multi-job processing and unmanned operationsl, with a series of unique characteristics.

• Side mounted motion system enables safe handling of large and heavy materials and heavy-duty stainless-steel covers protect from impact.
• Access from three sides enable easy loading and unloading and the Zone Divided Worktable  feature make it possible to exchange jobs while processing.
• To avoid backlash and support thick and heavy materials there are options like Quick Water Level Adjustment and a variety of table grids.
• Armament based on your specific needs. Choose betseen 2D, Alphajet or Beveljet, 4000 or 6000 bar and up to sex separate abrasive cutting tools.
