Oasis Scientific Inc

3110 Wade Hampton Blvd, Ste 18
Taylors,  SC  29687

United States
864-469-0919
http://www.oasisscientific.com
  • Booth: W5549

 Press Releases

  • ViTiny UM20-GN08 DiGi microscope directly connect to Monitor, plug and play, convenient for quick inspection. Together with continuous autofocus, it increases working effectiveness. UM20-GN08 microscopes includes standard DIN 4x /10x /20x object lens, which can reach the max. 2042x magnification.to example microscopic samples with a reasonabel cost.


    ViTiny UM20-GN08 can be connected to Windows PC, Android table, MAC PC via USB 3.0 cable. The new "UmViewer" software for Windows and Mac computers has many useful funscions, such as crosshairs, auto calibration system, auto locate the edge, subsidiary magnifier, overlap comparison, XY measurements, EDOF photo stacking, photo editing, time lapse videos and more.

    ViTiny UM20-GN08 DiGi Metallographic microscope
    • HDMI and USB3.0 output to a large monitor or a PC
    • Three object lens 4x, 10x, 20x, included in the package
    • 284x–2042x on 24" Monitor with 2MP camera sensor
    • Coaxial lighting for better image quality
    • Continous autofocus by remote or the software
    • Useful software (Windows and Mac) with many functions
    Technical Specs:
    1. ​Magnification : 284x–2042x on 24" Monitor
    2. Working Distance : 1.6–15.7 mm
    3. Field of View : 1.87–0.26 mm
    4. CMOS Sensor : 2M Pixels
    5. Interface of Output : 1080P Full HD & USB 3.0 TYPE-C High Speed Transmission
    6. Focus System : IR Remote Control, Alternative Auto and Manual Focus
    7. Light : White Light, Allow to adjust brightness from remote control or sofware
    8. Device Dimension : 66(W) x 68(D) x 255(H) mm
    9. Power Supply : DC 5V/2A , Cable Length : 180 cm
    What is in the pacakge:
  • Vividia VA-106i One-Way Articulation Borescope for iPhone iPad Android Windows PC:
    • Directly connect to your iPhone iPad Android or Windows PC.
    • Simple one-way articulation, bending back >180 degree
    • 6.2mm / 0.25" diameter camera head
    • Sem-rigid bendable shape-holding probe
    • 1280x720 HD camera resolution and 6 LED lights
    • Waterproof IP67 for camera head and probe
    Technical Specs of VA-106i borescope:
    Camere head diameter                       6mm / 0.24"
    Camera sensor                                   CMOS
    Camera resolution                              1280x720
    Focus range                                       5mm to 100mm / 0.25" to 5"
    Waterproof rating                               IP67 for camera and probe
    Max. working temperature                   80 C / 176 F
    LED lights                                          8 pcs
    Brightness adjustment                        No, alway on and max. brightness
    Articulation type                                 One-way only, max. >180 degrees
    Probe type                                         Sem-rigid, gooseneck type
    Probe length                                       68 cm / 2.2ft
    Ouput plug                                         USB-A
    Adaptors included                               USB-C and lighting connector
    Compatiable with                                iOS devices (iPhone iPad), Android, and Winbdows PC
    App name (free)                                 "Usee Plus" download from app store, play store or our website
    USB cable length                                 1.5m, flexible

    VA-106i-VA-108i_users_manual.pdf
    Download File
    Pictures taken with VA-106i:
    APPs and software:
    ​
    For Android phone and tablet, download the "UseePlus" app from Google Play Store.
    For iPhone and iPad, download the "UseePlus" app from Apple's app store.
    For Windows PC or tablet, download the software "UseePlus" from our webiste.

  • Grabber borescopes for iPhone iPad Android and Windows PC:

    • Directly connect to iPhone iPad Windows PC
    • Two diameter options: 8mm / 0.3" and 6mm / 0.24"
    • 4-claw grabber and removeable magnet
    • 1280x720 HD camera in the center of the probe head
    • 6 bright LED lights
    • Semi-rigid gooseneck probe tube

    Visual grabber borescope pick-up retrieving tools, G-810i and G-610i, are useful to mechanics, DIYers, technicians, electricians, plumbers, engieers, and inspectors.

    Differences between G-810i and G-610i models:
    • The probe head diameters are different, 8mm vs. 6mm
    • The shape and size of the removeable magnets are different
    • G-810i magnet cap is screwed to the probe tube; G-610i magnet piece is clipped on.
    G-810i probe head and magnet
    G-610i probe head and magnet*
    * the magnet piece is clipped on the probe tube. Pay attention to the magnet piece to prevent slipping off the probe.
    Technical specs for G-810i and G-610i grabber borescopes:
    ​Camera Head Diameter:                            8mm / 0.3” for   G-810i
    ​                                                               6mm / 0.24" for G-610i
    Waterproof:                                              IP65
    Camera Output:                                        USB2.0 with USB-A plug
    Camera Resolution:                                   1280X720
    Camera sensor:                                        CMOS
    LED Illumination:                                      6 pcs LED lights
    Depth of Focus:                                        20 - 100mm
    View Angle FOV:                                       90 Degree
    Magnet Ring at the end of probe:               Yes, removeable
    Grabber Open Size Diameter:                    19.4mm / 0.77”
    Camera Compatible:                                  iPhone, iPad, Android，Windows PC
    USB Flexible Cable Length:                        1.5 meter / 5ft
    OTG Cable USB to C adaptor:                     USB-C and lighting
    Probe tube material:                                  Gooseneck tube, semi-rigid
    ​Probe tube length:                                     82cm / 2.7ft
    ​App name:                                                "Usee Plus"
    Picture format:                                          JPEG
    Vidoe format:                                            mp4
    ​
    APPs and software:
    ​
    For Android phone and tablet, download the "UseePlus" app from Google Play Store.
    For iPhone and iPad, download the "UseePlus" app from Apple's app store.
    For Windows PC or tablet, download the software "UseePlus" from our webiste.

 Products

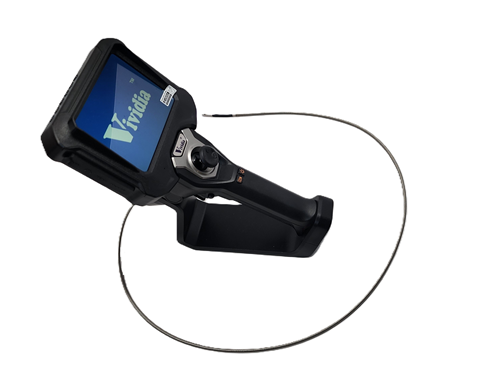

  • Vividia CF-4010D joystick dual-camera borescope
    Vividia CX-D4010F dual-camera joystick articulation video borescope: Great for welding and pipe inspection...


    • Vividia CX-D4010F dual-camera joystick articulation video borescope:
    • Joystick articulation, 360 degree all-way
    • Dual-camera probe head with both front-view and side-view HD cameras
    • 4mm / 0.16" diameter camera head
    • Metal braided insertion tube 1m / 3ft long
    • 5" LCD heavy-duty monitor for pictures and video, and removeable stand
    • Rechargeable battery for long work time

Categories

Inspection & Testing
  • Inspection & Testing - Quality/Process Control
  • Inspection/Testing Equipment - Leak/Hydrostatic
  • Inspection/Testing Equipment - Surface Finish
  • Inspection/Testing Equipment - Tube/Pipe
  • Nondestructive Testing Equipment
