Numalliance

1361 Howard St
Advanced Technology Center
Elk Grove Village,  IL  60007-2213

United States
847-439-4500
http://www.numalliance.com
  • Booth: S36023

Established in 1986, NUMALLIANCE Group covers a large panel of activity around cold forming metal wire, tube and flat-stock. The company has developed its know-how far beyond bending and is now a worldwide leading company proposing turnkey productivity solutions around tube, flat-stock and wire bending.

The recent acquisition of the assets of Addition Manufacturing Technologies and know-how of Addison Mc Kee, Eaton Leonard and Eagle completes the Numalliance tube range with a high performance offer of tooling, bending and endforming machines. Numalliance solutions can also integrate secondary operations such as notching, cutting, punching, chamfering, welding, threading, embossing, robotization, thermal stabilization, 3D control and auto-correction of resulting programs. One third of our workforce is dedicated to engineering and R&D and enables the company to answer to the requests of Industry 4.0.

Our solutions are sold around the world with over 14.000 machines installed everywhere, 9 subsidiaries and technical sales offices (USA, Mexico, China, India, Russia, Slovakia, Germany, Brazil, Romania) and an international network of 40 agents.

Numalliance meets the expectations of all types of sectors: automotive, aeronautics, agriculture, construction, sanitary, furniture, medical, shop equipment and more and accompanies its customers all around the world, and offers them a reactive and attentive service.


 Products

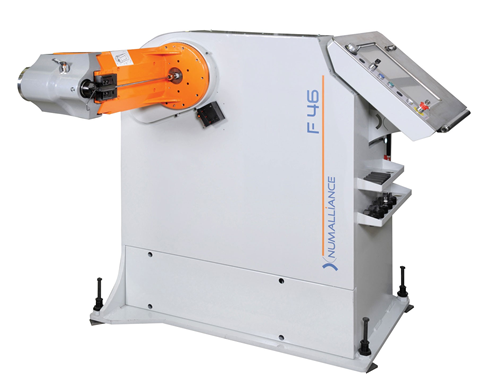

  • F46
    CNC wire bending machine for the production of 3D parts from wire coils 100% electric wire bender, ideal for manufacturing small or long parts at high speeds. Quick and easy programming of the parts Ø 2 to 7 mm Ø.08 to .28" ...


  •  MAIN FEATURES

    • 3D bending from coil

    • bending head with multiple radii

    • Bending head moving freely around the material

    • Integrated safety gate system

    • Compact bending head

    • ZigZag bending

    • Push bending

    • 4 digital axes

    • Tool compatibility with R21XX machine (2 heads machine)


    CONTROL

    • Industrial PC based software

    • Multilingual dialog and programming interface on a 19” touch screen

    • Real time Touch and Form simulation program

    • Additional I/O

    • Internet connection : remote assistance and chat room

    • Auto-corrective feedback from

    • 3D-measuring devices

    • Tool editor allows programming of complex parts with simple
      tooling


    DIMENSIONS

    • 1600x1550x1400mm / 2100x1550x1900mm

    • 59x47x52” / 82x61x52”


    WEIGHT

    • 1150 kg

    • 2500 lbs

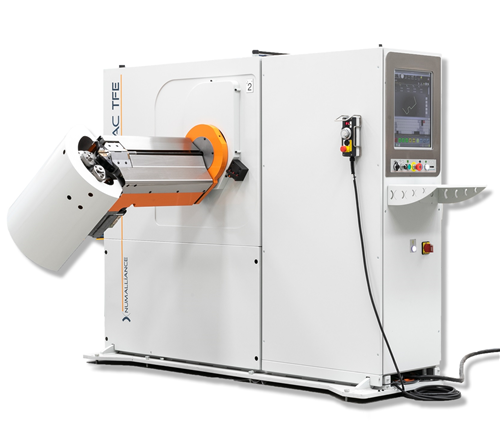

  • R216 TFE
    Compact, robust and efficient wire bending machine 100% electric, high precision, reduced cycle time Heavy-duty workhorse and your partner for life Wire Ø 5 to 16mm...


  • MAIN FEATURES

    • Compact, modularsturdycost-efficient

    • 3D bending

    • From coil

    • Full electric bending arm

    • heads machine

    • Bending head moving freely around the material

    • Simple and easy to configure tooling

    • Integrated safety gate system



    CONTROL

    • Industrial PC based software

    • Multilingual dialog and programming interface on a 19” touch screen

    • Simulation program

    • Additionnal I/O

    • Internet connection : remote assistance and chat room

    • Auto-corrective feedback from 3D-measuring devices



    DIMENSIONS

    • 7800 x 3150 x 1800mm

    • 307 x 125 x 71”



    WEIGHT

    • 3000 to 4300 kg

    • 6600 to 9500 lb

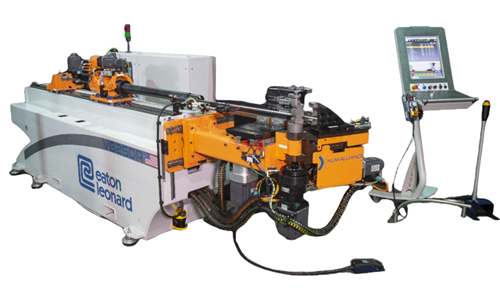

  • VB 25 DR
    Tube bending machine Flexible, multi stack and quick tooling changeover Ø 6 to 51mm Ø .24 to 2.0"...


  • APPLICATIONS

    • Air and Space

    • Automotive

    • HVAC

    • Furniture

    • Job Shop



    MAIN FEATURES

    • All electric benders

    • Stackable multi-radii option

    • Touch and Form control

    • Industry standard compatible

    • Low interference bending head

    • Automatic Loading and Offloading (Option)

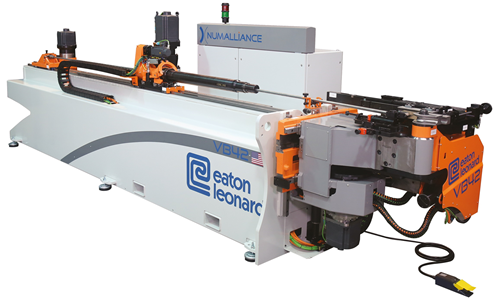

  • VB 42
    Tube bending machine Flexible, multi stack and quick tooling changeover Ø 6 to 51mm Ø .24 to 2.0"...


  • APPLICATIONS

    • Air and Space

    • Automotive

    • HVAC

    • Furniture

    • Job Shop



    MAIN FEATURES

    • All electric benders

    • Stackable multi-radii option

    • Touch and Form control

    • Industry standard compatible

    • Low interference bending head

    • Automatic Loading and Offloading (Option)

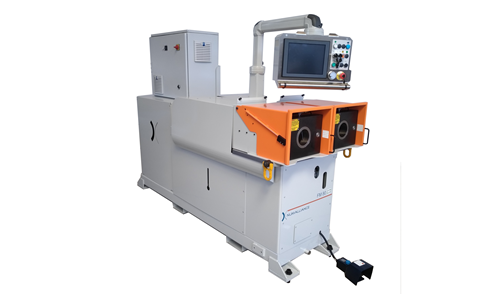

  • FM80 ID/OD
    Endoforming machine Precision tube end sizing machine Tube Ø: min. 20mm - max. 80mm min. .80" - max. .3.15"...


  • APPLICATIONS

    • Aerospace

    • Automotive

    • Liquid and Gas transfer systems, etc...



    MAIN FEATURES

    • 2 IO/OD forming heads

    • numerical axis per forming head

    • Reduction, expansion, calibration

    • Hydra-green technology (optimized power consumption)

    • Compact and economic (stand-by mode after 180 seconds)

    • Integrated air-cooling system

    • Quick and easy setup

    • Customizable clamping and working pressure

    • Easy user interface

    • Programmable operation

    • Floor mounting or casters for easy relocation

    • Easy integration in automated production cells

    • Plug and play

    • Max. thickness: 2mm Stainless steel



    CONTROL

    • A 12" touch screen and integrated keyboard

    • Preloaded or customized sequence

    • Multi-language support

    • Easy switch between metric and imperial system

    • Security management system with status message display

    • Auto diagnostic (I/O and current with CNC axis display)

    • Ethernet ready (local network & internet connectivity)

    • Support & maintenance assistance via internet

    • Foot pedal for cycle activation



    OPTIONS

    • Up to 3 ID/OD forming heads possible

    • Machine can also be equipped with:

               - ER heads (expansion / reduction)

               - RF heads (Ram Forming)

    • Automatic tooling rotation

    • Automatic tool lubrication system

    • Manual tool lift assist

    • Assist lift table equipped with a crane (study)

    • Robotic integration



    DIMENSIONS

    • 900 x 2600 x 1900 mm

    • 35"x 102" x 75"



    NET WEIGHT

    • 2 000 kg (without tooling)

    • 4,400 lbs (without tooling)

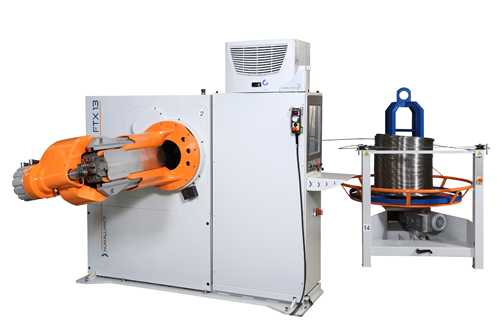

  • FTX 13
    Wire and tube bending machine The most advanced bending technology Ø 3 to 16 mm Ø .12 to .63"...


  • MAIN FEATURES

    • 3D bending from wire in coil form

    • bending head with multiple radii

    • Bending arm rotates freely around the wire

    • Simple and easy to configure tooling

    • Integrated safety fence protection

    • Double bend

    • Single minute exchange tooling



    CONTROL

    • Industrial PC based software

    • Multilingual dialog and programming interfaceon a 19" touch screen

    • Part and program simulation in 3D

    • Additional I/O

    • Connects to internet for remote assistance and chat room

    • Auto-corrective feedback from 3D-measuring devices

    • Tool editor allows programming of complex parts with simple tooling

    • Optional sorftwaressee our Industry 5.0 documentation



    DIMENSIONS

    • 6200x3150x2100 to 8500x3150x2100mm

    • 245"x125"x83" to 335"x125"x83"



    NET WEIGHT

    • 3,000 to 5,000 kg

    • 6,600 to 11,000 lbs
